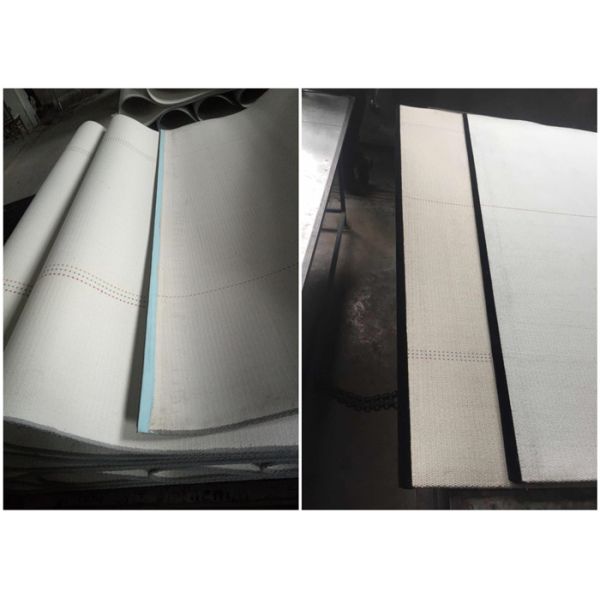

Synthetic PET Corrugator Belt For BHS TCY JS 5ply Corrugator Line
Products Description:
Synthetic PET Corrugator Belt For 5ply Corrugator Line used specially for corrugated cardboard production lines ,it made of the high grade PET continuous filament yarn with high tension and low flexibility.Our specifical structure design ensure the hydrophilic and drying ability.
Corrugator Belt Features
Suitable for averange liner machine speed
Longlife time running
Suitable as a top and bottom belt
Corrugator belt Specifications
| Product | Woven Corrugator Belt |
| Thickness | 9mm |
| Width range | 1000mm - 3000mm |
| Length | 80 meters |
| Heat-resistance | 220℃ |
| Tensile strength | 70Mpa |
| Coefficient of friction | ≥ 0.40µ |
| Weight per unit | (7.5±0.3)kg/㎡ |
| Air-permeability 40mmwater Column | 2.0m³/m2 min |
| Seam | Hot JAW lacing/Clipper with rubber coated |
| Suitable position | Top & Bottom belt |
| Used on all corrugators high tearing resistance Long life time running High abrasion resistance Moisture absorption Heat resistance Low noise |
Corrugator Belt Seam
Model1:Fastener Clipper With Rubber
1. Low noise emission
2. Resisitancw tearing, Non-abcission
3. Rubber surface to protect the corrugated board smooth
4. Rubber flat surface neither demage pressure device not demage outer rubber of driving - roller
5. Stabilizes transmission, prevents hesvy roll from Jointing.
Model2: Hot JAW Lacing
1. Low noise emission
2. Flocking surface to protect the corrugated board no marks
3. No weakening of the fabric
4. Without touch of the clipper with the board, heating plates and pressure loading system.
5. Safety and persistent
6. Excellent running performance
Corrugator Belt Application
Huatao Corrugator belts are specifical use in the heating and tracking section of all kinds famous corrugators.Till today,we could provide the super quality belts for kinds of demanding corrugator belt application:
Including BHS/AGNATI/MHI/MIT/MARQUIP/TCY/ISOWA and more China corrugator machine.
We study and offer the suitable belts for every application and Custom Industrial Belts .
And expertise to work for help customer make better quality cardboards and cartons at lower manufacturing cost.

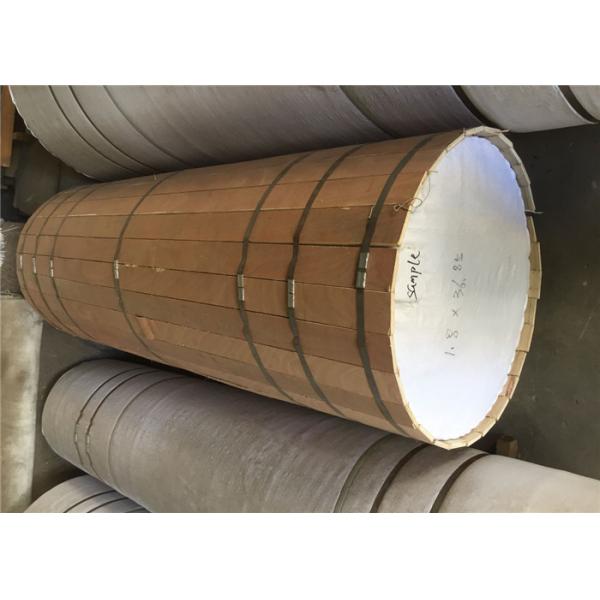

Corrugator Belts Package
Type-I:Waterproof film+Dampblanket+Plasticbag+pallet
Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.
Why Choose Us ?
Our team of senior engineers can organize the best commodity source for you. By supplying the best Chinese products, Professional design and responsible attitude on service,we devote to creating our unique brand "HUATAO" in global. Since the establishment, " HUATAO " products have been supplied to more than 20 countries and set up the agencies. And our products and service have been recognized and trusted by the end users all the way. We believe, once we have the cooperation, "HUATAO" will be your most reliable partners in your road to success. Because of trust , business will be simple.
